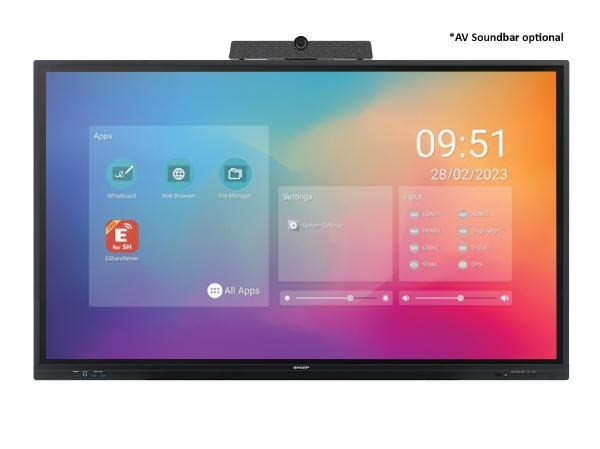

The SHARP PNLC752 interactive touch display combines genuine 4K Ultra-HD resolution and an intuitive Pen-on-Paper user experience. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The PNLC752 interactive touch display also features an integrated controller with whiteboard, overlay, and wireless functionality to help enhance your productivity. Sharp’s expertise in touch screens for education brings forth the LC series, designed to meet the demand for Bring Your Own Device (BYOD) preferences. Equipped with seamless USB-C connectivity.
Features
- Enjoy a natural writing experience – with precise and responsive touch interaction through bonded screen technology.
- Out-of-the-box-ready experience – with interactive functionality pre-installed; no external devices needed for an all-in-one solution.
- EShare – boosts participation by wirelessly sharing content from your device to the display, and from the display to multiple devices simultaneously.
- USB-C connectivity – instantly appeals to today’s users who favour using their own device. A single cable transmits data, video/audio output and power delivery for the simplest and seamless connection, even powering the connected device at the same time.
- HDMI-OUT – allows connection of an additional output device such as a projector to present content on a larger canvas to reach a bigger audience.
Specifications
General Information
- Panel Technology: IPS with Direct LED backlights
- Screen Size: 75 inch
- Max. Resolution: 3840 x 2160 pixels
- Max. Brightness (average): 450 cd/m2
- Contrast Ratio: 1200:1
- Viewing Angle (H/V): 178
- Supported Orientation: Landscape
- Dimensions (W x D x H): 1722.5 x 1032.1 x 87.1 millimetre
- Bezel Width: 21.9 (left, right & top); 53.2 (bottom) millimetre
- Weight: 51 kilogram
- VESA Mounting [mm]: 4 holes M8 800 x 400 (FDMI)
Resolution
- Native Resolution: 3840 x 2160
- Supported Resolution: 1920x1080; 3840x2160; 1024x768; 1920x1200; 4096x2160; 1280x720; 1366x768; 1280x1024; 1440x900; 1600x1200; 1650x1050; 2560x1600; 1920x2160
Touch Screen
- Touch Technology: Infrared
- Multi Touch: 20-Points
- Data Interface: USB 2.0 (full speed) HID; USB powered, plug & play
Synchronisation Rate
- Aspect Ratio: 16:9
Connectivity
- Input Video Analogue: 1 x VGA
- Input Video Digital: 1 x Display Port (with HDCP); 1 x USB-C (with HDCP); 3 x HDMI (with HDCP)
- Input Audio Analogue: 1 x 3.5 mm jack
- Input Control: 1 x RS232; LAN 10Base-T/100Base-TX/1000Base-T
- Input Data: 4 x USB 3.0 (Type-B)
- Output Video Digital: 1 x HDMI (loop through: HDMI, DP, OPS slot-in, Android SoC)
- Output Audio Digital: 1 x SPDIF
- Wireless LAN: IEEE802.11ac/n/a/g/b compliant
- Bluetooth: 4.2 compliant; supported protocols: A2DP, AVRCP, GATT, HID, HSP, HFP
SOC
- OS: Android 11.0
- CPU: Arm Cortex-A55 (Quad-Core)
- Memory: 4GB
- Storage: 32GB
Open Modular Intelligence
- Compute Module Slot: Slot Technology: Open pluggable specification (NEC/Intel OPS Standard)
Electrical
- Power Consumption: 200W ECO (Shipping setting), 420W
- Power Savings Mode: <0.5W (ECO Standby); 2W (Network Standby)
- Operating Hours: 16/7
Environmental
- Operating Temperature: 5°C to 35°C
- Operating Humidity: 20% to 80% (no condensation)
Other Features
- Safety and Ergonomics: CE; FCC; RCM; REACH; RoHS; UL/C-UL
- Audio (Speakers): Integrated Speakers (15W + 15W)
- Shipping Content (Accessories): 1x 300 cm USB Cable; 2 x Passive Stylus; 2x AAA batteries; Blank Sticker; Bracket for Camera; Cable Clamps; Display; Pen Tray; Power Cable; Remote Control; User Manual; Wireless Adapter
